Developer Guide

Acknowledgements

Thanks to NUS fundamental code for Duke as well as the idea and inspiration behind this project.

Design & Implementation

Architecture

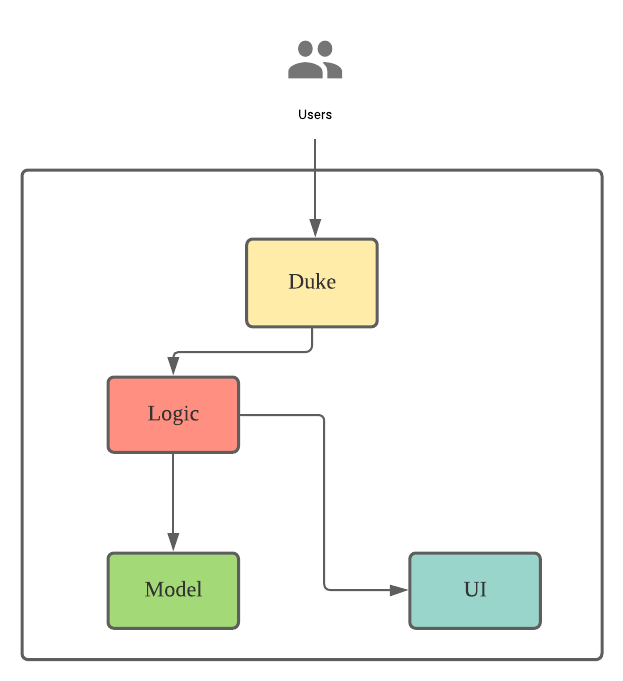

The Architecture Diagram given above explains the high-level design of the App.

Main Class

Main component is the coordinator to handle user input and execute the corresponding task by interacting with logic layer.

Logic Layer

This layer contains two main components, Parser and Command.

• Parser will parse user input and return a Command object to the caller which is Duke class
• The Command will execute the tasks which corresponds to the user input. It will update the list of Model information and use UI component to print out relevant message.

Model Layer

• This layer consists a several Task models:

  • Todo task: the basic task which contains only the todo description and done status.
  • Appointment task: apart from the description and status, it also has time and location attributes.

• The system will generate a list of different Task to user.

UI Layer

• This layer is only for print different message for user based on the user input.

Components Interaction

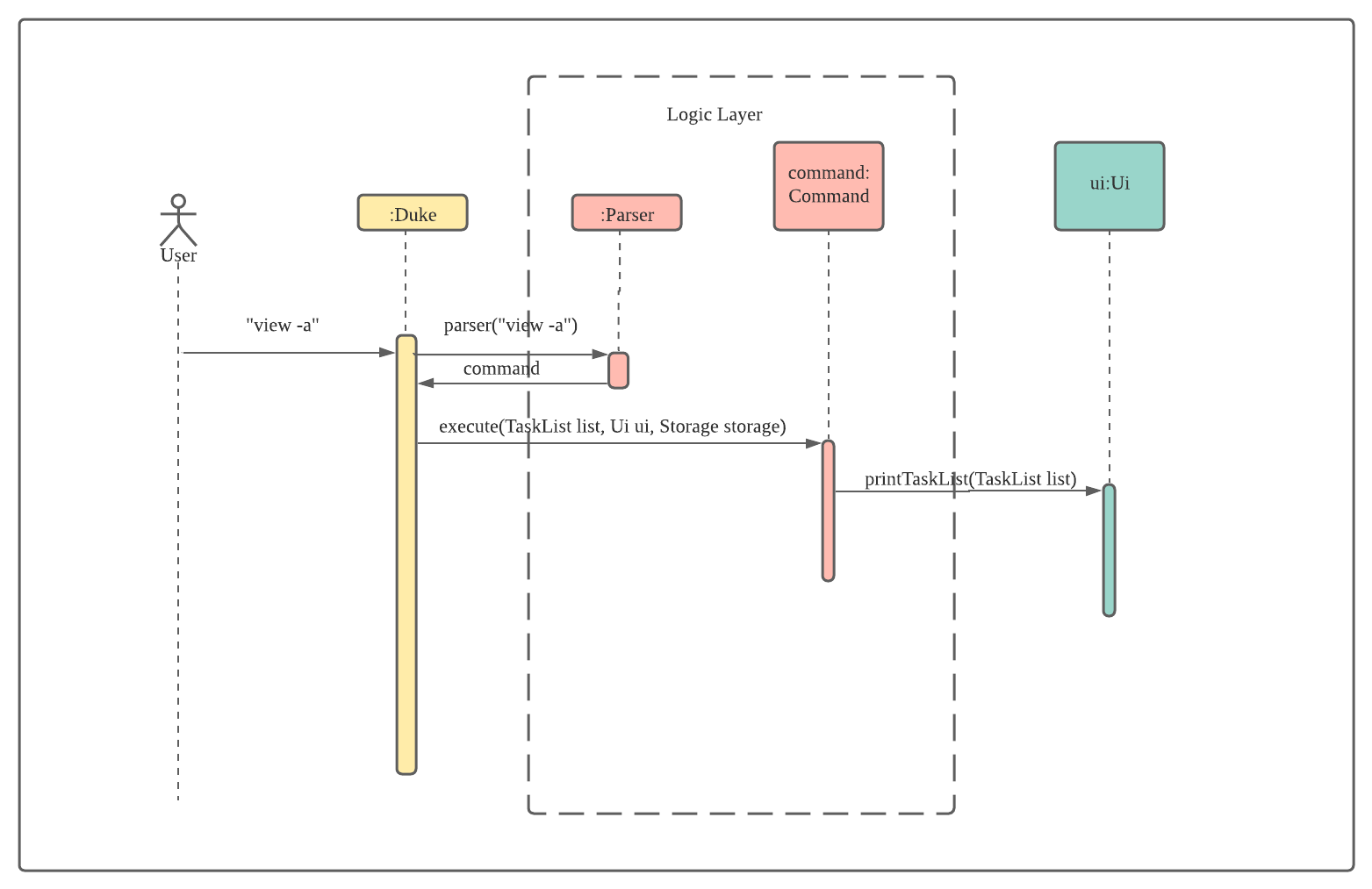

The sequence diagram blow shows how the components interact with each other to achieve desired result. This is taking example of user input view -a.

From the sequence diagram, we can see that a user input View -a to andDuke class called Parser.parse method with the user input to get a Command object. The execute method of the Command object is called to carry out the task.

The reason of doing this is to decouple the parsing logic and task execution logic which is the implementation follows Single Responsibility Principle.

Implementation

The Main flow of the software is to get user input -> parser user input -> execute task -> provide feedback to user regarding the user action.

Task execution for create appointment and edit time/location of appointment, checking the progress of the task, as well as exiting the program

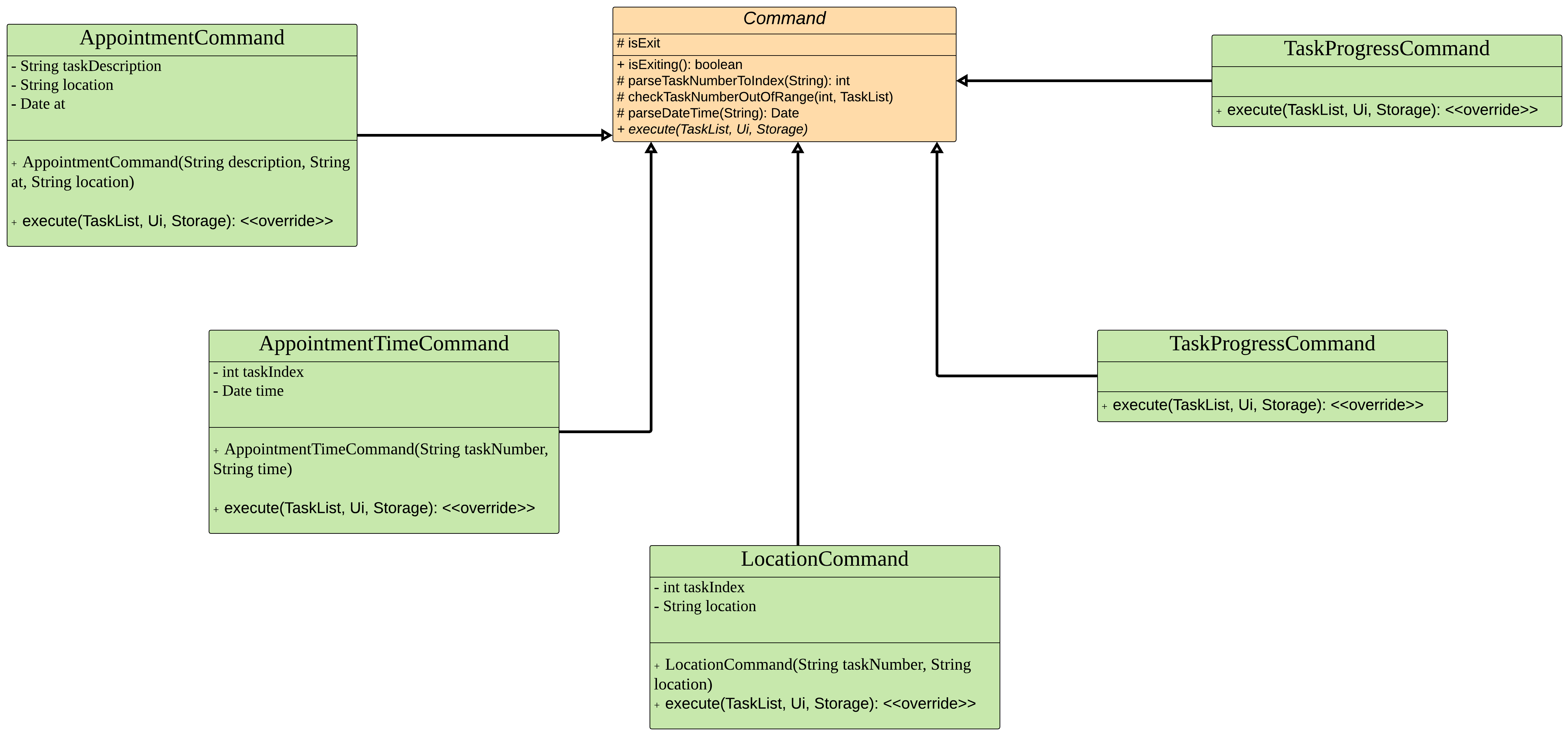

For AppointmentCommand, AppointmentTimeCommand, ByeCommand, LocationCommand, and TaskProgressCommand, they are all extends Command class. Please refer to below image for implementation details.

Command class is an abstract class which serves as a based class contains some command methods like parseDateTime and checkTaskNumberOutOfRange for all subclass to use. It also has an abstract method execute which enforce each subclass to override the implementation to handle different user input. This follows the Single Responsibility Principle and The Open Closed principle to keep our code dry reduce the chances to modify the existing codebase thus reduce the regression error.

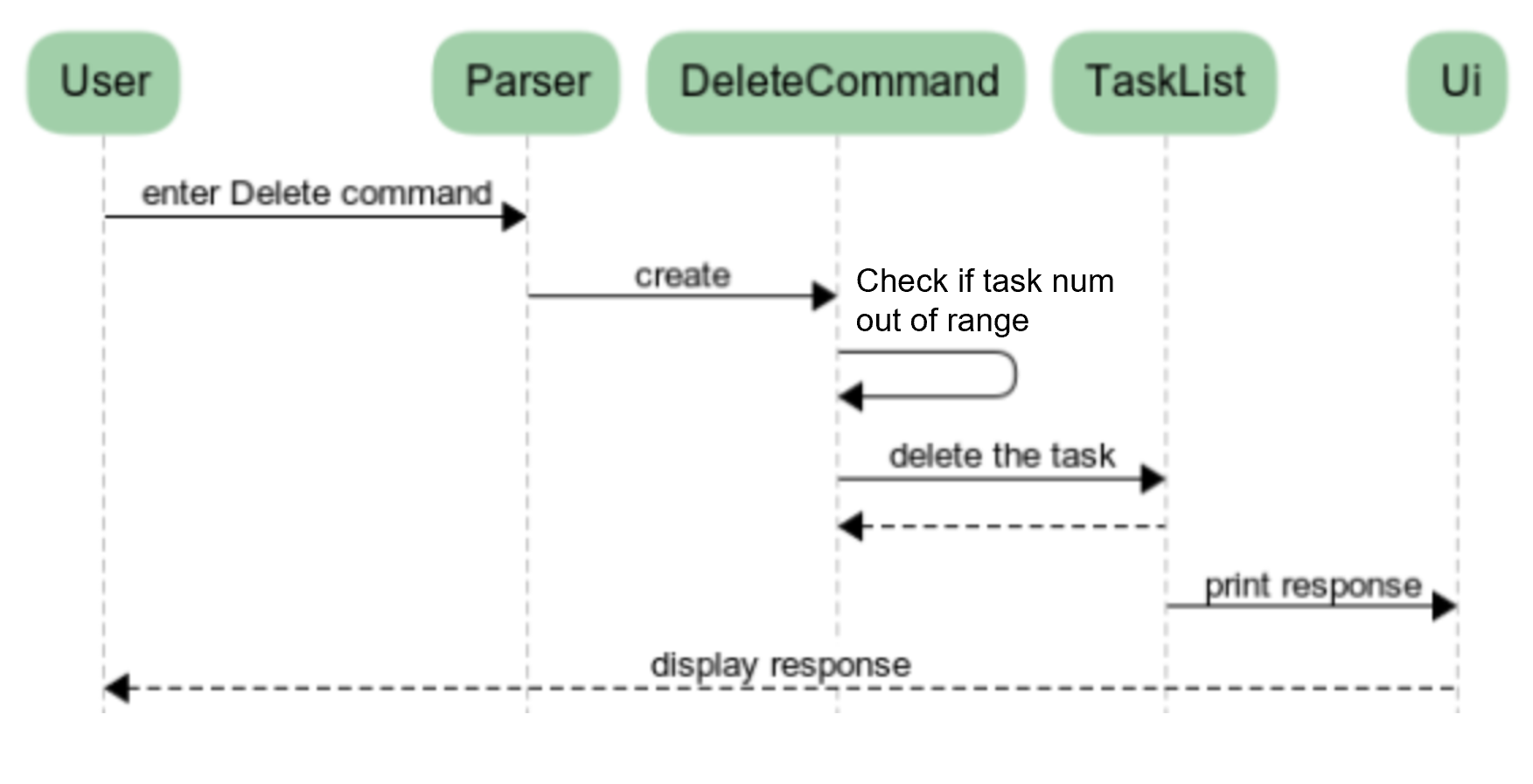

Delete feature

It extends Command class. It checks if the number input by user is out of range. If yes, error thrown. If no, the task will be deleted from the TaskList. Ui will print the response.

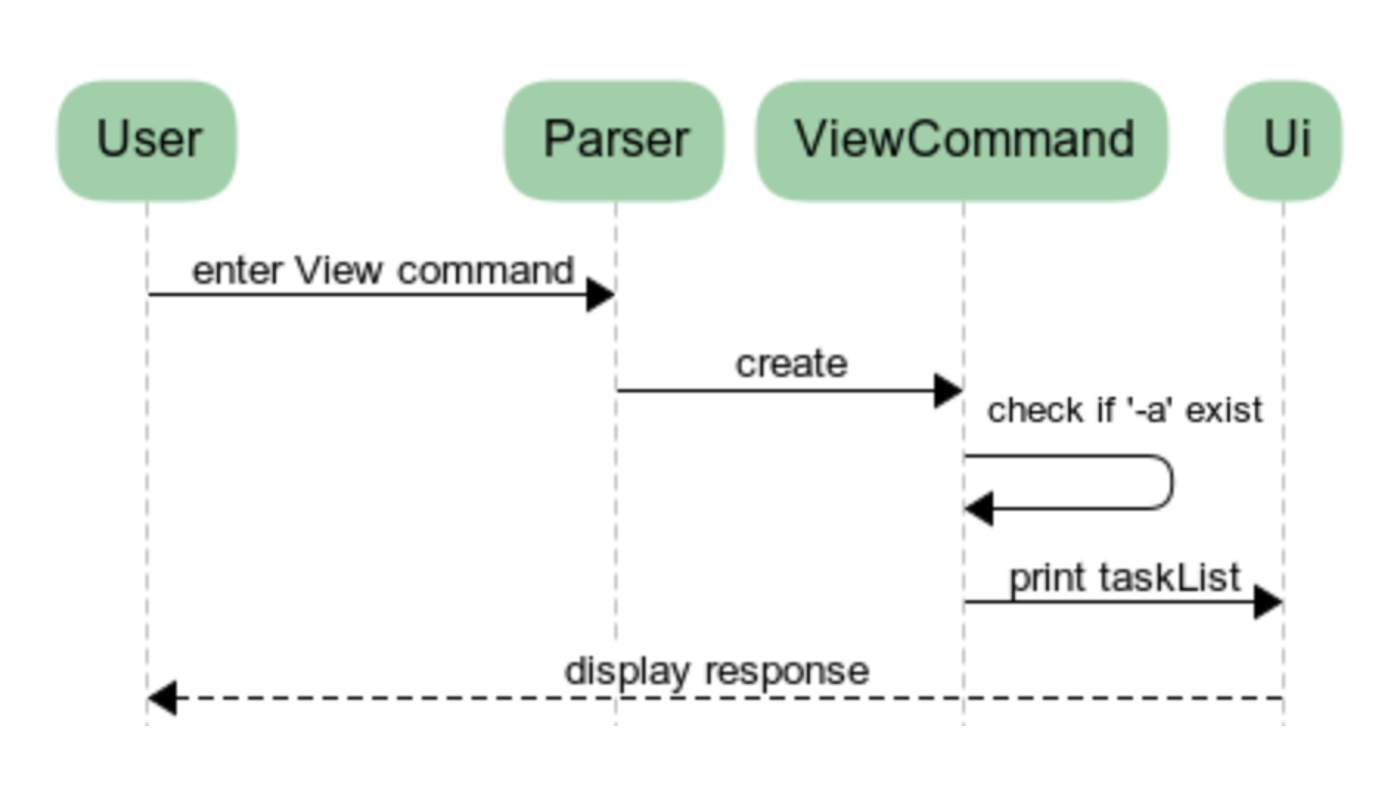

View feature

It extends Command class. If user input -a together with the command, Ui will print all the tasks in the TaskList together with the done status. If no, Ui will print all the pending tasks in the TaskList together with the done status.

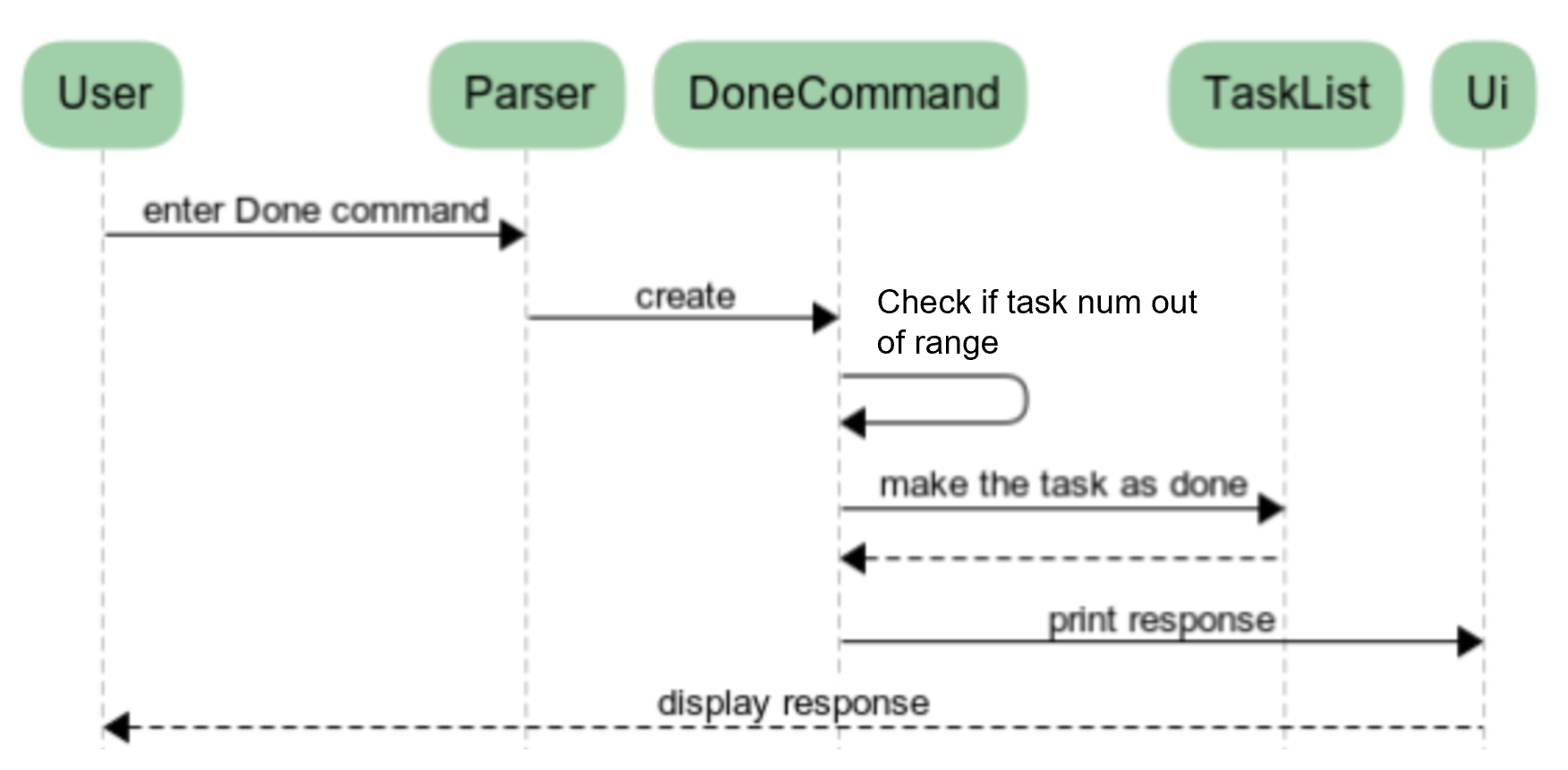

Mark as done feature

It extends Command class. It checks if the number input by user is out of range. If yes, error thrown. If no, change the status of the task to done [X].

Homework feature

It extends Command class. It adds assignments to tasks list and assign marks/due dates/difficulty level and progress. It also allows changing of progress status and due dates.

Category

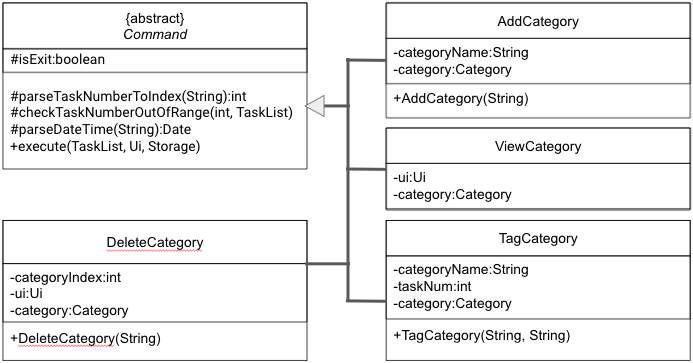

Category Commands

AddCategory Command

AddCategory extends Command class. It adds a new category to the Category list.

DeleteCategory Command

DeleteCategory extends Command class. It removes an existing category in the Category list based on the given category number. If an existing category is tagged to a task, an error will throw to prevent deleting of category.

TagCategory Command

TagCategory extends Command class. It tags an existing category to a task by the provided category number. If the given category number does not exist and error will throw.

ViewCategory Command

ViewCategory extends Command class. Ui will print all the tasks in Category.

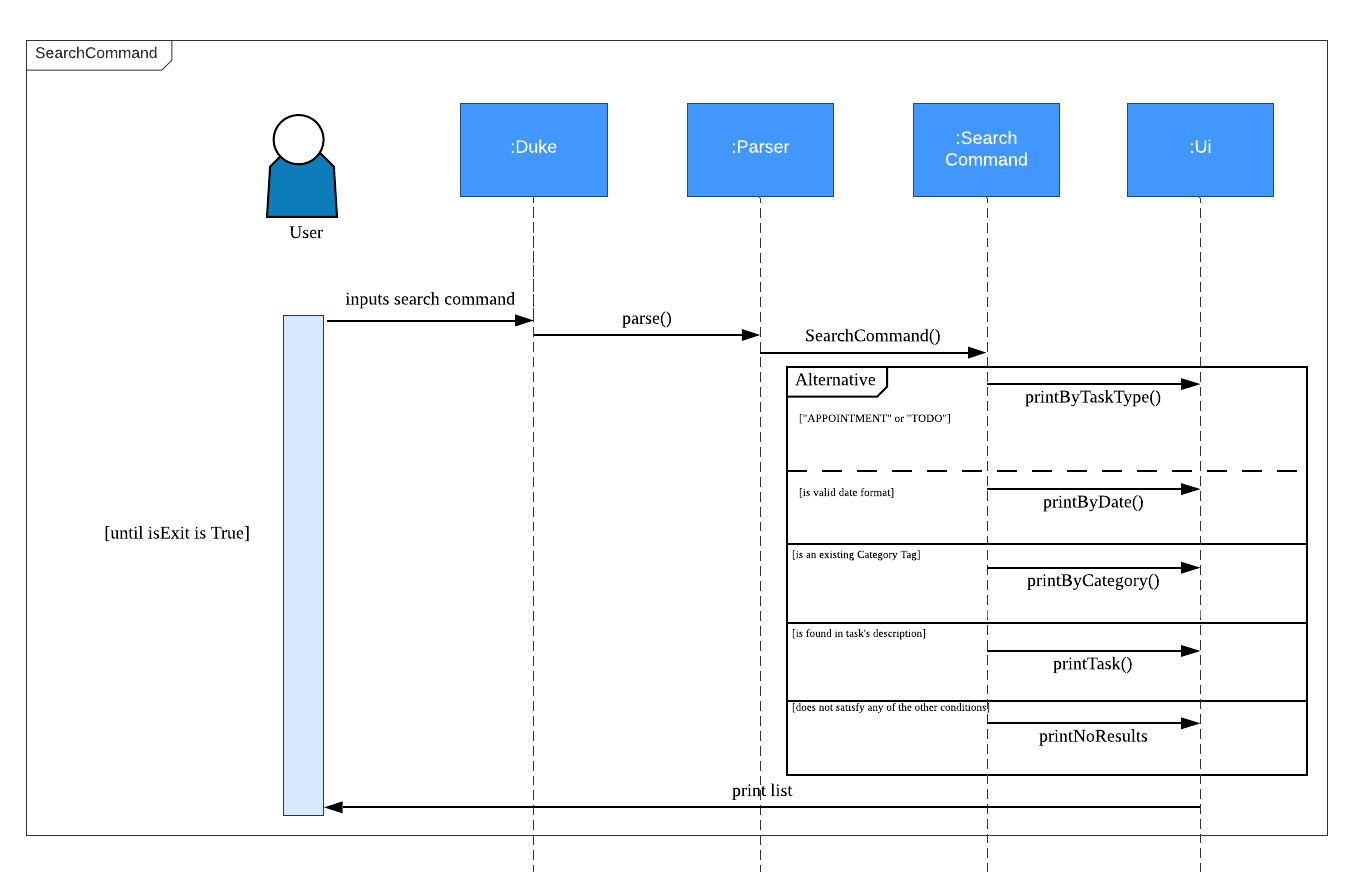

Search Command

Search Command extends Command class. It filters and prints the task list based on user’s input.

Product scope

Duke is a task tracker specifically built for computing students that are comfortable with the CLI. Working on improving and adding features to the existing Duke project and making it useful for students to manage their schedule and work. Natural language will be implemented to avoid exceptions due to typing errors.

Target user profile

John - 35 Male

Part time student - working adult. Often coming to class late due to work commitment, he would like to be able to track school related tasks that are separated from other commitments outside of school. He finds it difficult to track his work deliverables and his school deliverables separately. So he would like to have a place to write down all the required things that he needs to attend to, so that he can focus on school and work separately. This is to improve his focus in school related submission work.

As a working IT professional, he has a personal laptop with him all the time. And he prefers to use the CLI to track his task as that is what he interacts with the most throughout his day.

User Flow

He powered up his laptop, and opened the software using Intellij. John sees a todo list, a list of unfinished tasks will be presented to him with the due date of each individual task. He started working on the task, upon finishing the tasks, he keyed in “done ” and that task is marked as done in the system. He keyed in “list todos” and saw the task he finished was marked as done.

Value proposition

Duke is CLI software that helps individuals track the tasks that were keyed in by individual users. It allows users to add tasks, set due dates to a task, update tasks, and mark tasks as done. It also can list the tasks and let the user know how many tasks that user has finished and how many unfinished tasks, as well as the overdue tasks.

User Stories

Version	As a …	I want to …	So that I can …
v1.0	user	be able to add a task	keep track which task is not done yet
v1.0	user	be able to delete a task if that task is not valid anymore	the task list is not cluttered
v1.0	user	see the responses from Duke after I enter commands	know the commands are executed
v1.0	user	be able to see all tasks	plan my time
v2.0	user	be able to see unfinished tasks only	be more focus on the unfinished tasks
v2.0	user	mark tasks as done	track the progress
v2.0	user	be able to have different task types	search them easily
v2.0	user	be able to add category type	tag categories to a task
v2.0	user	be able to remove category type	the category list is not cluttered
v2.0	user	be able to view all category list	view which category are available
v2.0	user	be able to misspell my commands	still input my commands even with typo
v3.0	user	assign category to task	find related task to a category
v3.0	user	be able to rank upcoming assignment in difficulty level	choose which task to work on first
v3.0	user	be able to see how much assignment marks	choose which task to work on first
v3.0	user	be able to track assignment due date and edit when needed	complete assignment on time
v3.0	user	be able to mark my progress of my assignments	decide on which assignment needs to get started
v3.0	user	be able to view task list by task type	focus on specific task type when the list is too long
v3.0	user	be able to view tasks with certain category tag	focus on specific category tag when the list is too long
v3.0	user	be able to view tasks with certain date	focus on upcoming appointments when the list is too long
v3.0	user	be able to view tasks that contains certain keywords	filter my task list when it is too long

Non-Functional Requirements

Usability - System should be able to autocorrect some of the low-level typos in user’s command inputs.

Glossary

• glossary item - Definition

Instructions for manual testing

1. Download the jar file from Release v3.0
2. Run the application on your preferred terminal - java -jar tp.jar
3. To add a task, enter todo clean my fish tank
4. To view your task, enter view
